Make:

Winget Syncro

more pictures...

Type:

5TC13 Rod Breakdown Machine

Description:

This machine was specifically designed for high speed production of wire where floor space is limited. The 5TC13 is supplied with 4 three step pullblocks, a double finishing capstan and 13 die positions as standard. The use of a three speed gearbox on the capstan drive will give 6 wire finishing speeds. Alternatively a separately driven capstan gives a wider range of finishing speeds. Drafting is at a constant 26%.

Specification:

Maximum Entry

9.5mm copper or aluminium

Finish Diameter

1.0mm to 4.1mm diameter

Maximum Finishing Speed

40 m.p.s.

Maximum Motor

400 h.p.

View original 5TC13 spec sheet

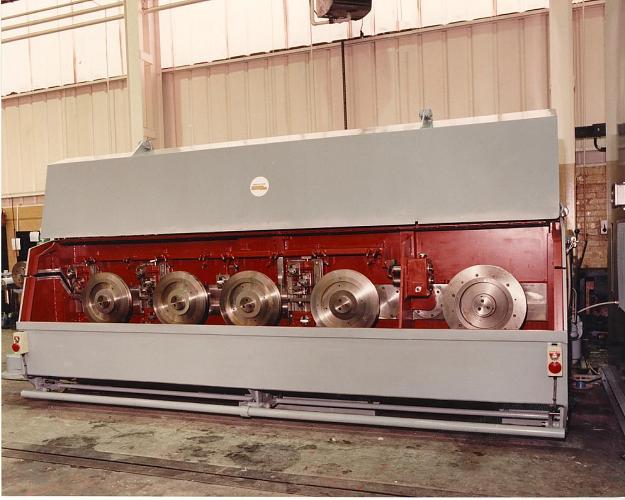

Picture: 5TC13 Rod Breakdown Machine
